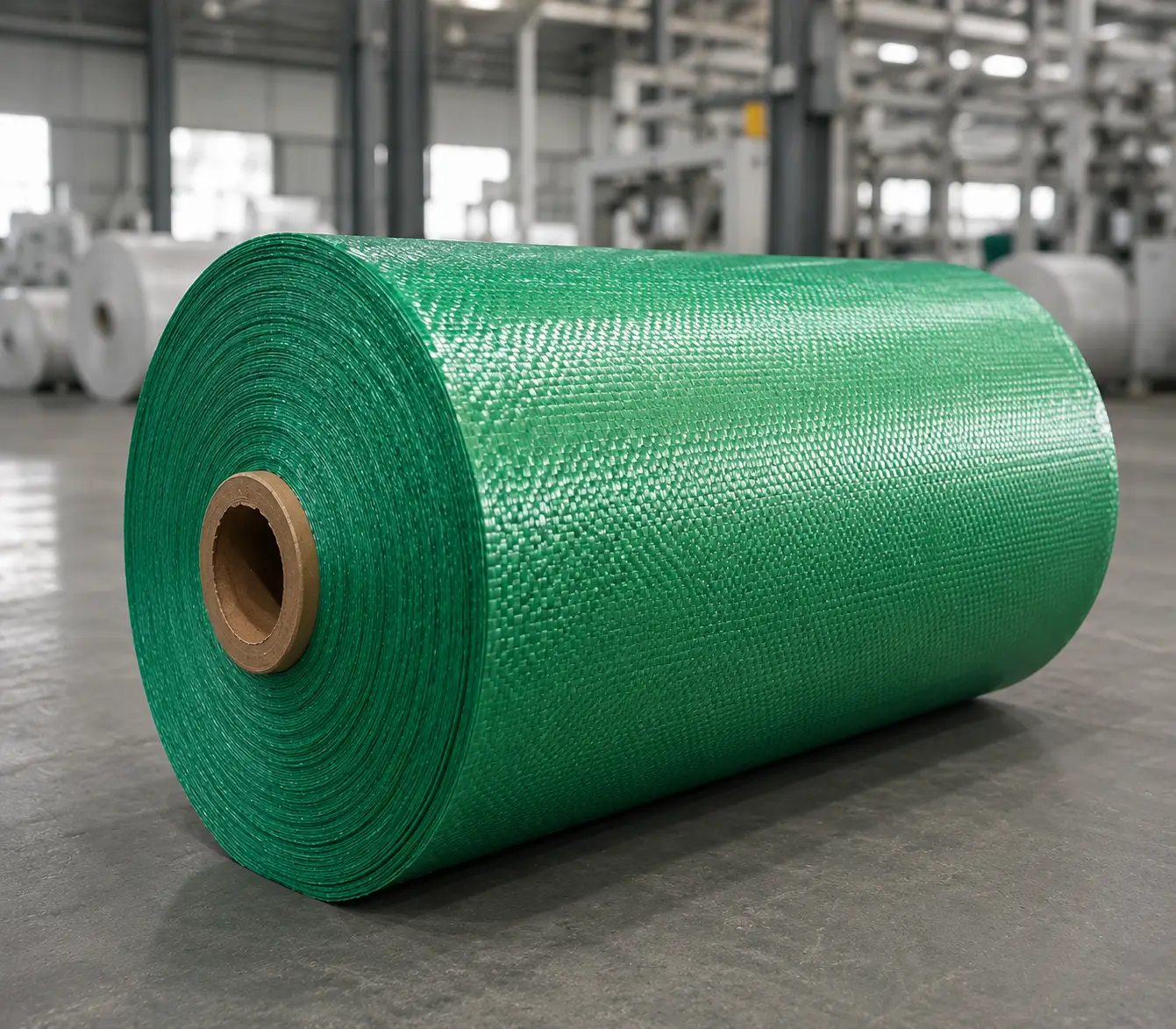

A wide production hall filled with a green PP woven fabric roll

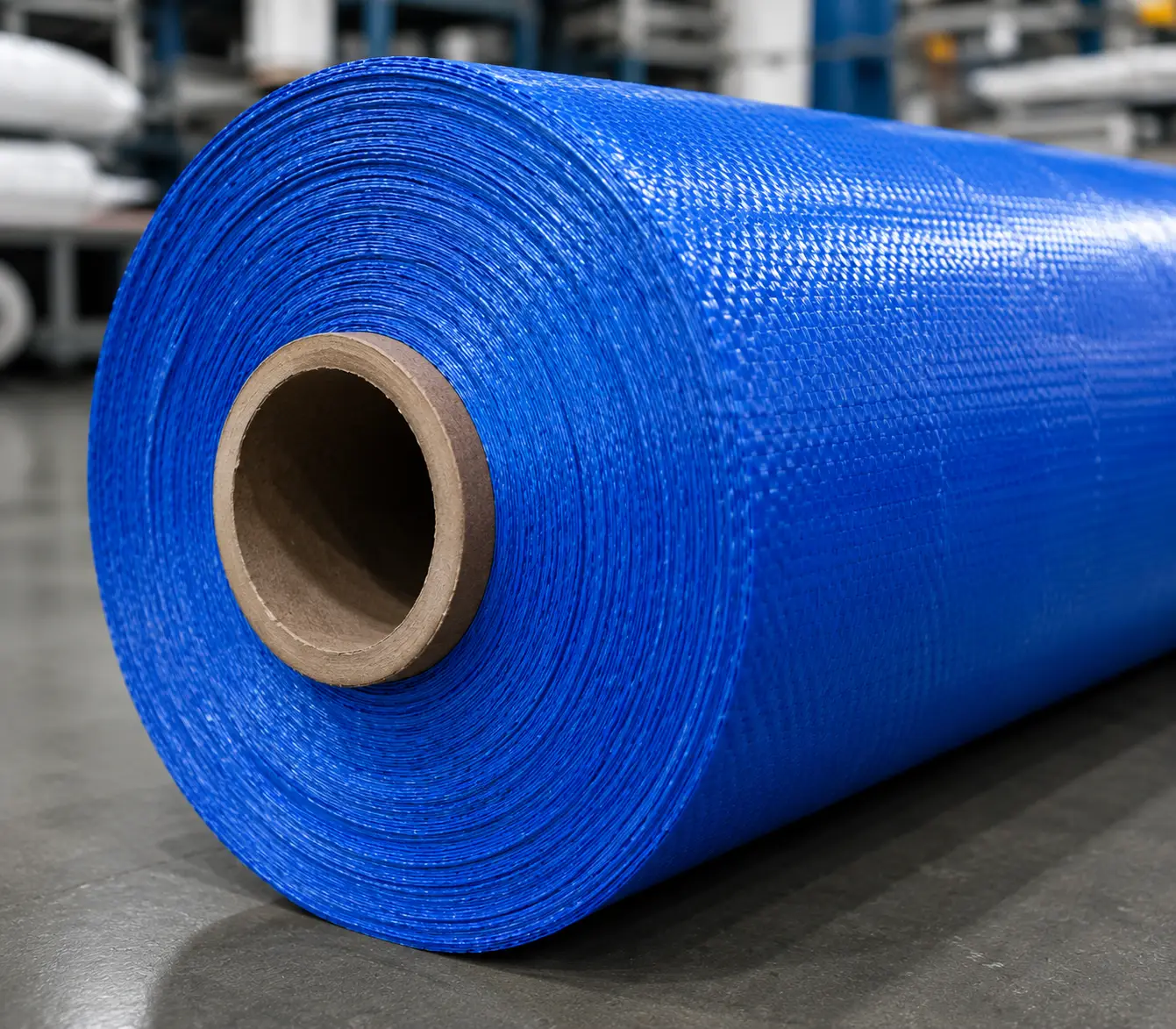

A large blue woven fabric roll with a visible cardboard core for PP woven fabric rolls.

A large blue woven fabric roll with a visible cardboard core; detail of the roll edge, weave direction, and consistent material surface.

A large white woven fabric roll with a visible cardboard core for PP woven fabric rolls

PP Woven Fabric Rolls for Bag Making and Industrial Conversion

XH Packaging supplies PP woven fabric rolls as a semi-finished converting material for woven bag factories, laminators, printers and industrial fabric processors. Produced from polypropylene tapes and supplied in flat or tubular woven form according to the approved specification, the fabric can be customized with fabric weights of 40–120 gsm, roll widths of 30–220 cm, mesh from 7 × 7 to 14 × 14, selected colors, material formulations, surface treatments, roll lengths and core dimensions. It is used for bag making, lamination, printing, slitting, protective covers and other dry industrial packaging applications.

Reference production ranges cover 40–120 gsm fabric, 30–220 cm roll widths and 7 × 7 to 14 × 14 mesh.
Virgin PP, recycled PP, UV masterbatch, custom formulations and approved color matching can be specified for the intended use.
Plain woven fabric, fabric laminated on one or both sides and printing-ready surface treatments support different converting routes.
Roll length can be defined by meterage, weight or finished diameter, while the paper core can be matched to the customer's unwinding equipment.
The fabric serves as a base material for woven bags, FIBC components, tarpaulins, packaging liners, agricultural covers and industrial protective products.
More than 100 circular looms support a stable monthly output of about 1,000 metric tons for regular and repeat supply programs.

Message Email

Product Description

Product Details

A Semi-Finished Material for Downstream Conversion

PP woven fabric roll is made by weaving stretched polypropylene tapes into continuous fabric and winding the material for further processing. Unlike a finished bag, the roll is one part of the final packaging system. Cutting, printing, lamination, liners, seams, closures and the converting equipment all affect finished performance. A new construction should therefore be approved through a sample or converting trial under the buyer's actual conditions.

Select the Fabric Around the Next Process

Bag Making
Fabric rolls can be converted into cement, fertilizer, feed, rice, sand, construction and other PP woven bags. The required flat or tubular form, width, fabric weight and weave should be set from the finished bag dimensions, intended load, cutting method and sewing or sealing process. Net weight alone is not enough to select the fabric; the product density, handling route and final bag construction also need to be reviewed.
Lamination and Printing
Unprinted woven rolls are available for converters that complete their own surface processing. Plain fabric, fabric laminated on one or both sides and printing-ready treatment can be specified according to the next operation. Confirm which side will be processed, the coating or lamination system, print method, line temperature and required adhesion before production. A line trial is recommended when the converter is using a new material or process setting.
Slitting and Industrial Protection
PP woven fabric rolls are also used for tarpaulins, packaging liners, agricultural covers and industrial protective materials. For these applications, define the finished width, slitting method, surface treatment, expected exposure and joining process. UV masterbatch can be considered when a defined period of sunlight exposure is expected, but the required formulation should be reviewed against the climate and service duration.

Match Fabric Construction to Performance

Fabric Weight, Mesh and Width
The 40–120 gsm, 30–220 cm and 7 × 7 to 14 × 14 ranges provide starting points, not a universal specification. Fabric weight, weave density and width work together with tape properties, surface treatment and final conversion. A heavier or tighter fabric is not automatically the best choice: strength, flexibility, air passage, process speed and cost must be balanced for the actual product and equipment.
Material Formula, Color and Surface
Virgin PP, recycled PP, UV masterbatch and customer-specified formulations are available subject to the end-use requirement. Material selection should consider appearance, mechanical performance, destination-market requirements and the finished product's contact conditions. White, transparent and colored fabric can be produced, with custom colors confirmed against an approved sample. Surface treatment is then selected according to printing, lamination, moisture exposure and conversion needs.
Roll Build and Equipment Compatibility
Rolls can be supplied by specified meterage, roll weight or outside diameter. Paper-core inside diameter, maximum roll diameter, roll weight and winding direction should match the buyer's shaft, chuck, unwinder and material-handling limits. Confirming these details before sampling helps prevent loading problems, unstable unwinding and avoidable stops on the converting line.

Production Capacity and Order Control

XH Packaging has produced woven packaging since 2007. The factory operates more than 100 circular looms and maintains a monthly output of about 1,000 metric tons of PP woven fabric rolls. Order-specific checks may cover width, fabric weight, mesh, color, tensile performance, surface treatment, roll length or weight, outside diameter, core size and packing. A confirmed specification and approved sample provide the reference for bulk production and repeat orders.

Item	Available or Reference Options
Product	PP woven fabric rolls
Material composition	PP woven fabric; virgin PP, recycled PP, UV masterbatch and customer-specified formulations are available
Fabric weight	40–120 gsm
Roll width	30–220 cm
Roll length	Customized by meterage, roll weight or roll diameter
Color	White, transparent, colored or matched to an approved customer color sample
Surface treatment	Plain woven, laminated on one or both sides, printing-ready treatment or application-specific finish
Printing	Unprinted rolls are available; pre-printing or lamination can be arranged according to the order requirements
Mesh	7 × 7 to 14 × 14
Paper core	Core inside diameter and finished roll diameter can be customized to the customer’s equipment requirements
Packing	Wrapped with PP woven fabric; plastic plugs can be added to both core ends to reduce dust, moisture and transit damage
Container loading	Actual loading quantity depends on roll width, roll diameter and fabric weight
MOQ	Confirmed according to specification, color and material formulation
Lead time	5–25 days
Applications	Bag making, lamination, printing, slitting, packaging conversion and industrial protective materials
Payment terms	Contact XH Packaging’s sales team or authorized distributor for order-specific terms

Information Needed for a Quotation

Intended end product and downstream process, such as bag making, lamination, printing, slitting or covering
Required flat or tubular fabric form, roll width and any finished-width tolerance
Target fabric weight, mesh and performance requirements
Virgin or recycled PP preference, UV requirement, color and any customer-specified formulation
Plain fabric, lamination on one or both sides and any printing-ready treatment
Required roll length, roll weight or maximum outside diameter
Paper-core inside diameter, unwinder type, shaft or chuck details and maximum roll weight
Inspection, sample, packing and labeling requirements
Order quantity, forecast demand, delivery schedule, destination and container-loading plan

Build the Roll Around Your Converting Line

Send XH Packaging your fabric form, width, gsm, mesh, material formula, surface treatment, core dimensions, roll build, downstream process and expected order volume. Our team can review production feasibility, prepare a sample or written specification and provide a quotation for an approved supply plan.
